Service Chart

We are capable of slitting, blanking, stamping, and oscillating. Mixture of those processes with continuous improvement allows us to fully service to our customers.

  1. Arrival

    Receiving master coils from all over the world.
    Storing in the warehouse where we can keep them the best quality until next process.

  2. Precision Slitting

    Sonoda's slitter line realizes accurate cutting.

  3. Blanking

    Produced by Seyi(1) & Komatsu(1)

  4. Metal Stamping (Press)

    Produced by komatsu (2 Lines)

  5. Oscillanting

    Produced by KOWA Tech

  6. Ship

    Supplying material to all over the Bajio region just-intime.

Capabilities

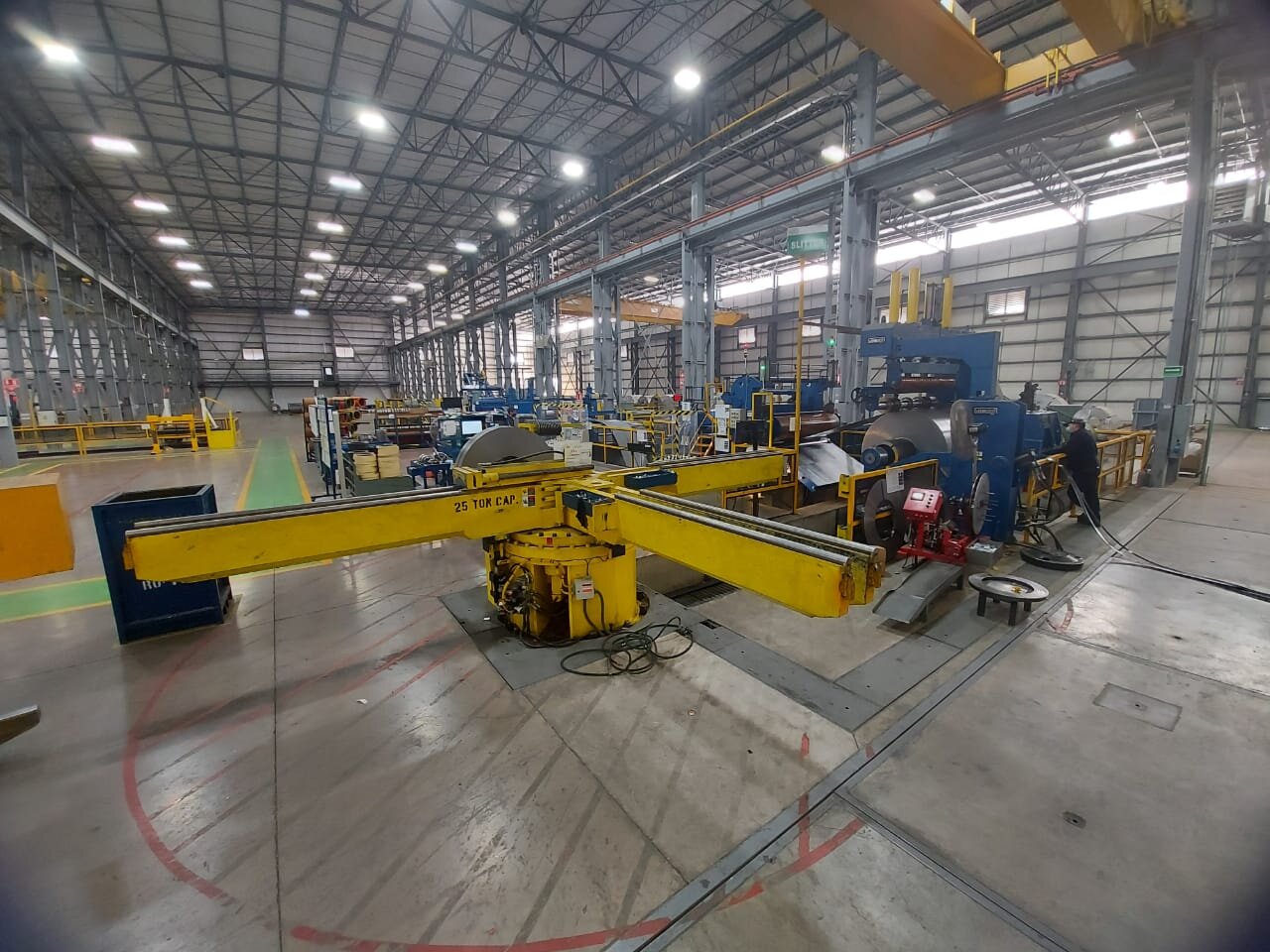

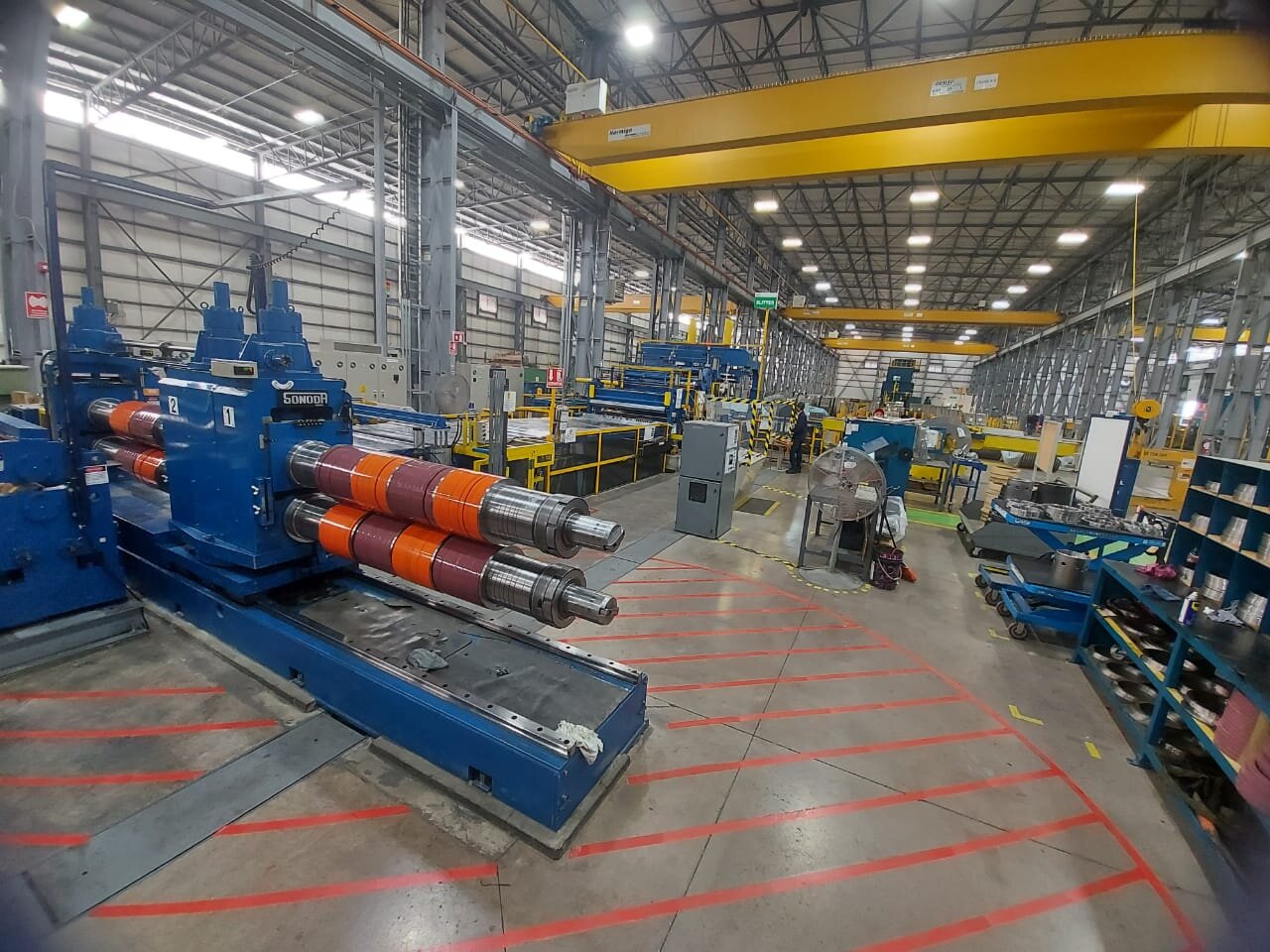

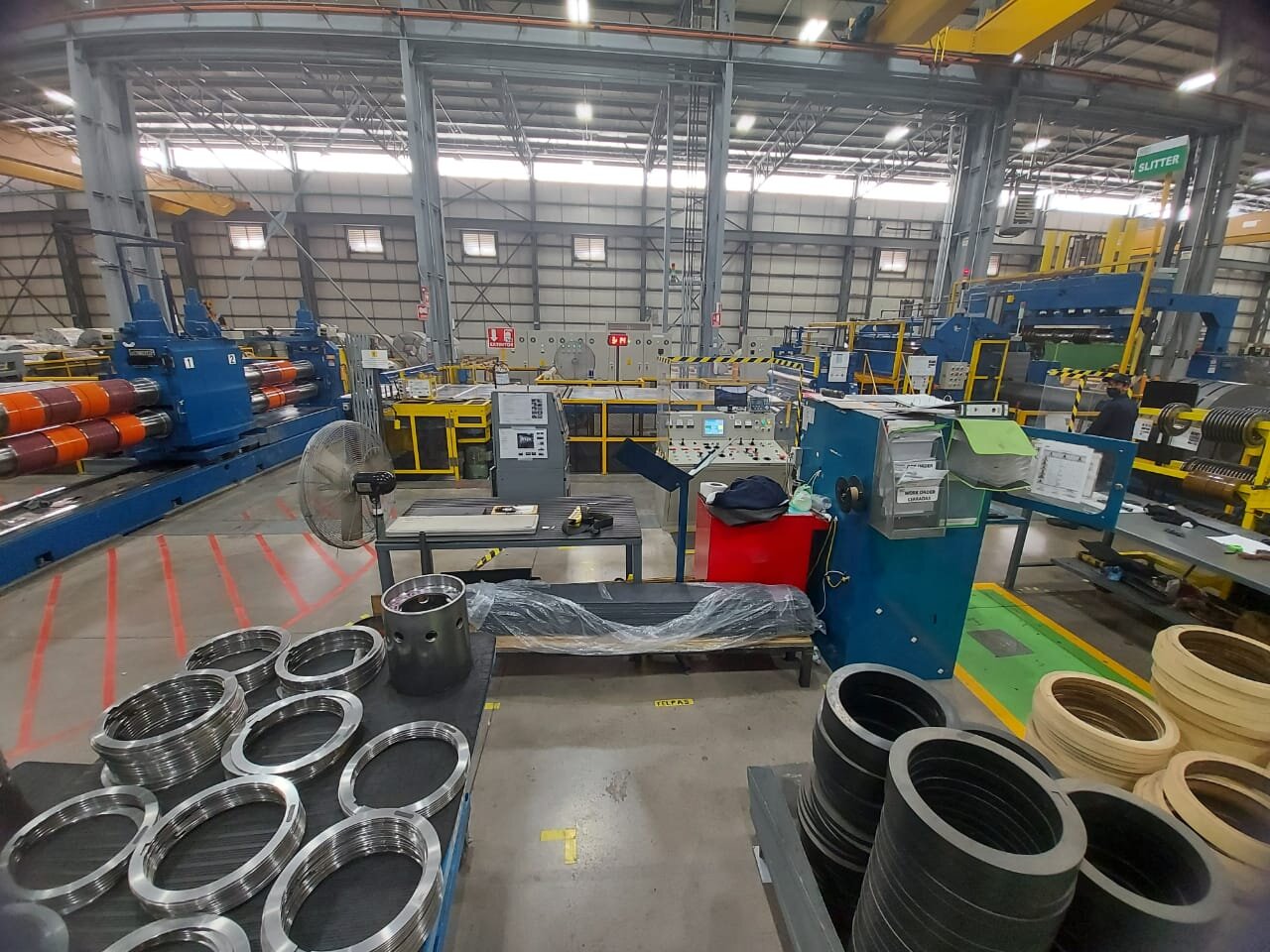

  • Slitter Line
    Poduced by Sonoda Engineering

    High Performance Slitting Line
    Thickness ranges of 0.4mm – 6.0mm
    Width ranges of 25mm – 1828mm
    Internal Diameters 508mm/610mm

    Packaging

    Custom built returnable coil racks
    Bar code tags attached to each item

    Capacity

    Slitting capacity of 6,000mt/month

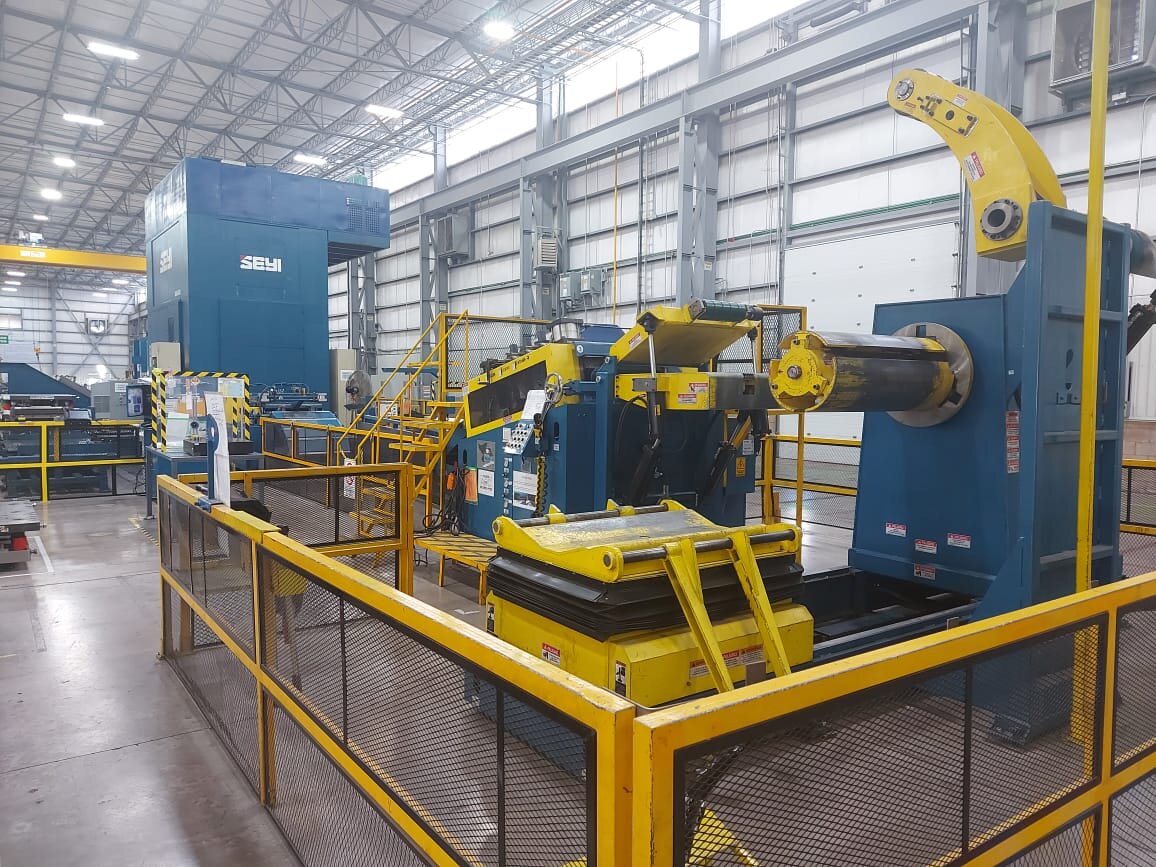

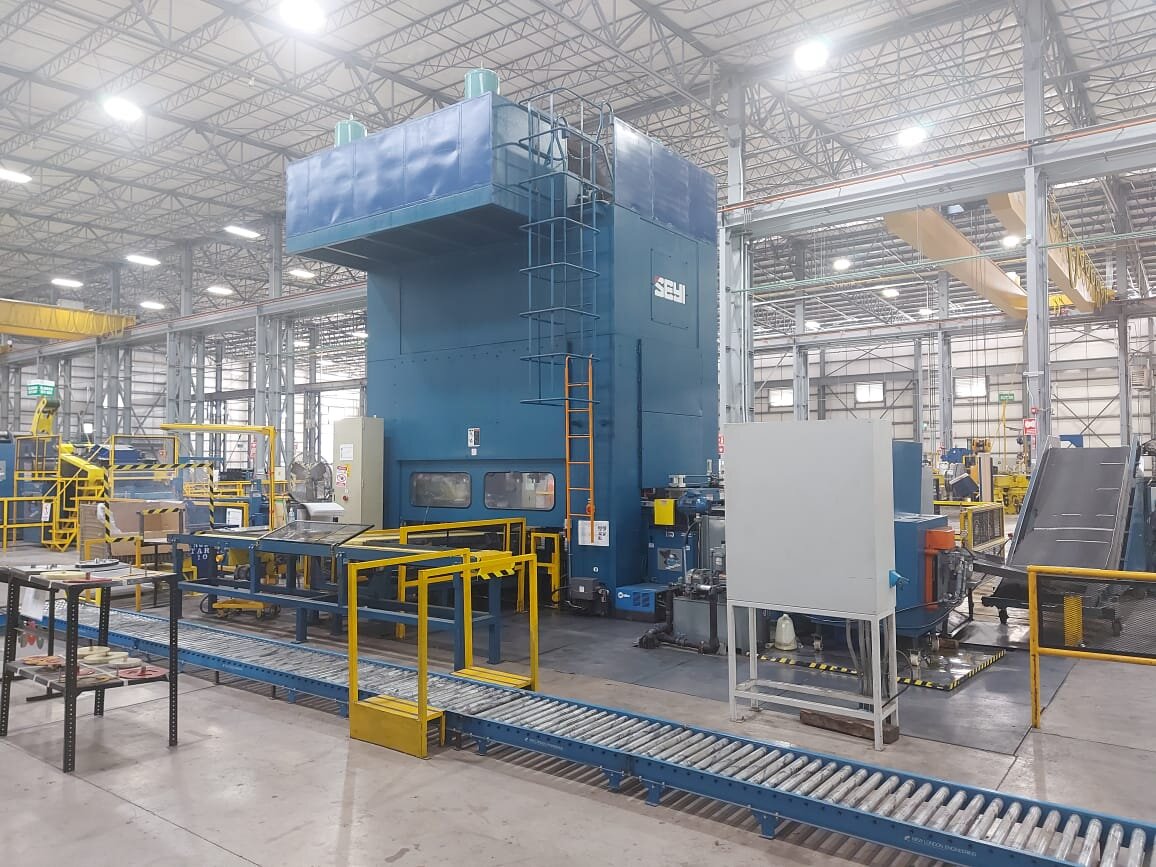

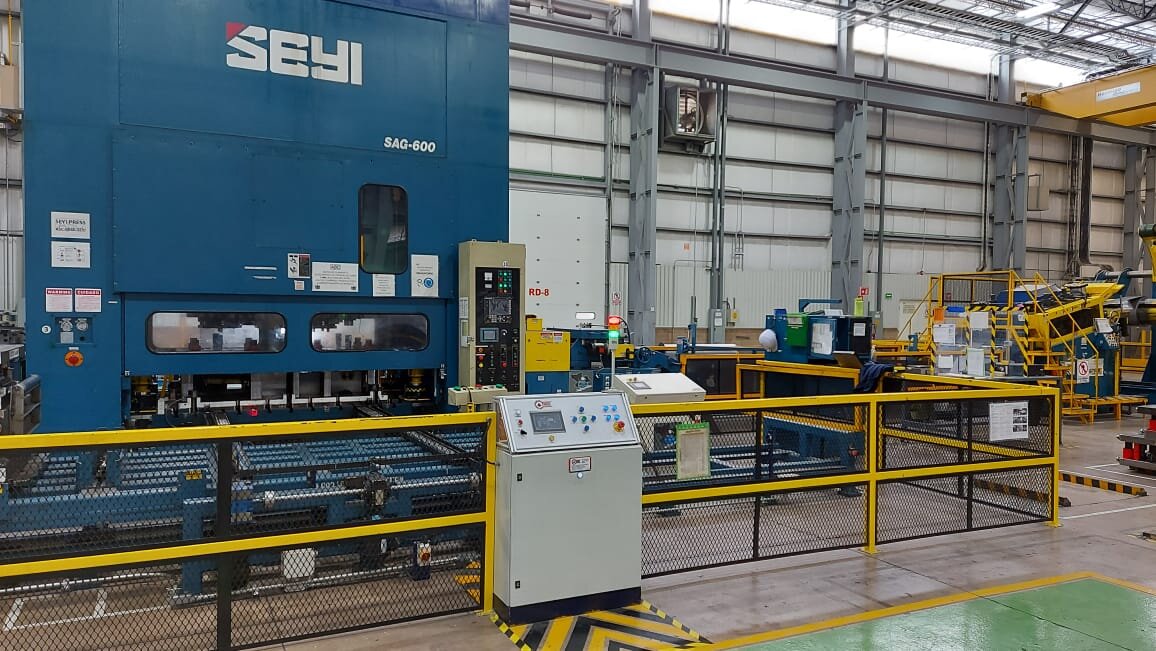

  • 600T Blanking Press #1
    Poduced by Seyi

    SAG-600 Blanking Press
    Bolster size of 2500mm x 1550mm
    Die Height of 850mm

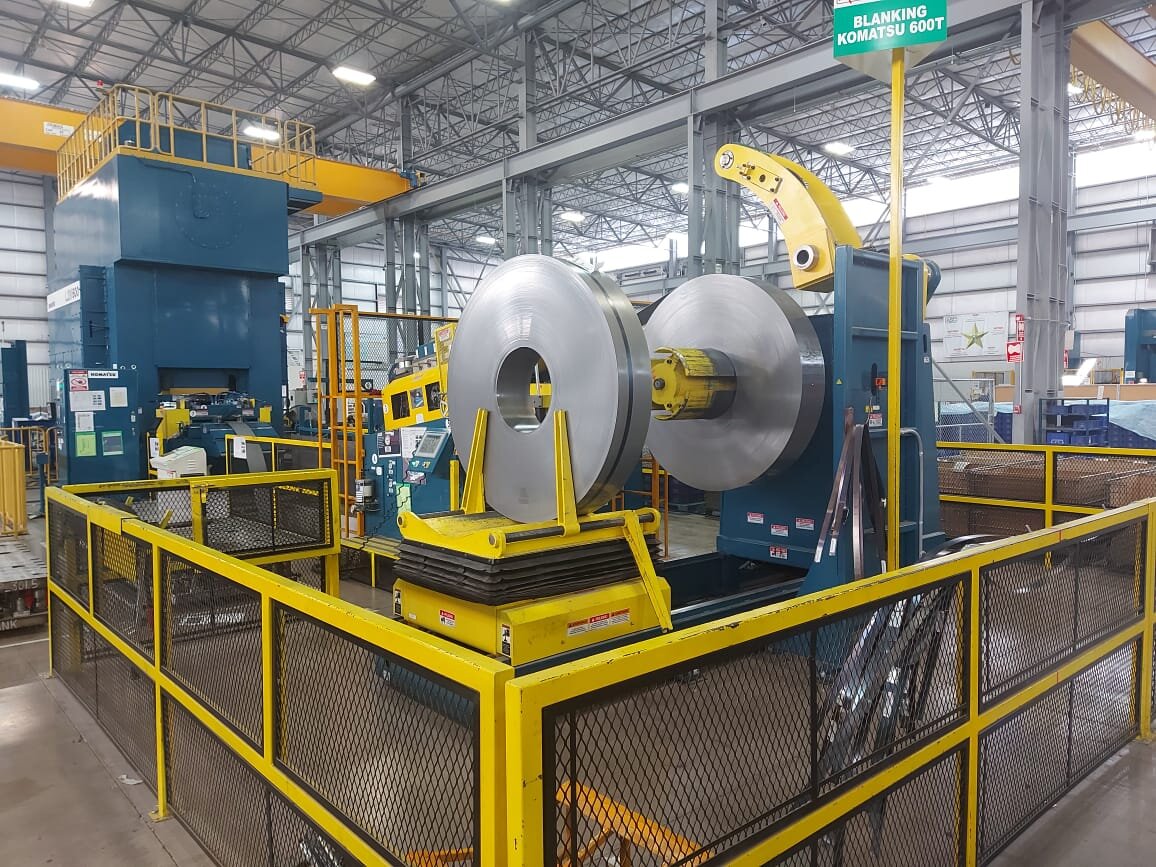

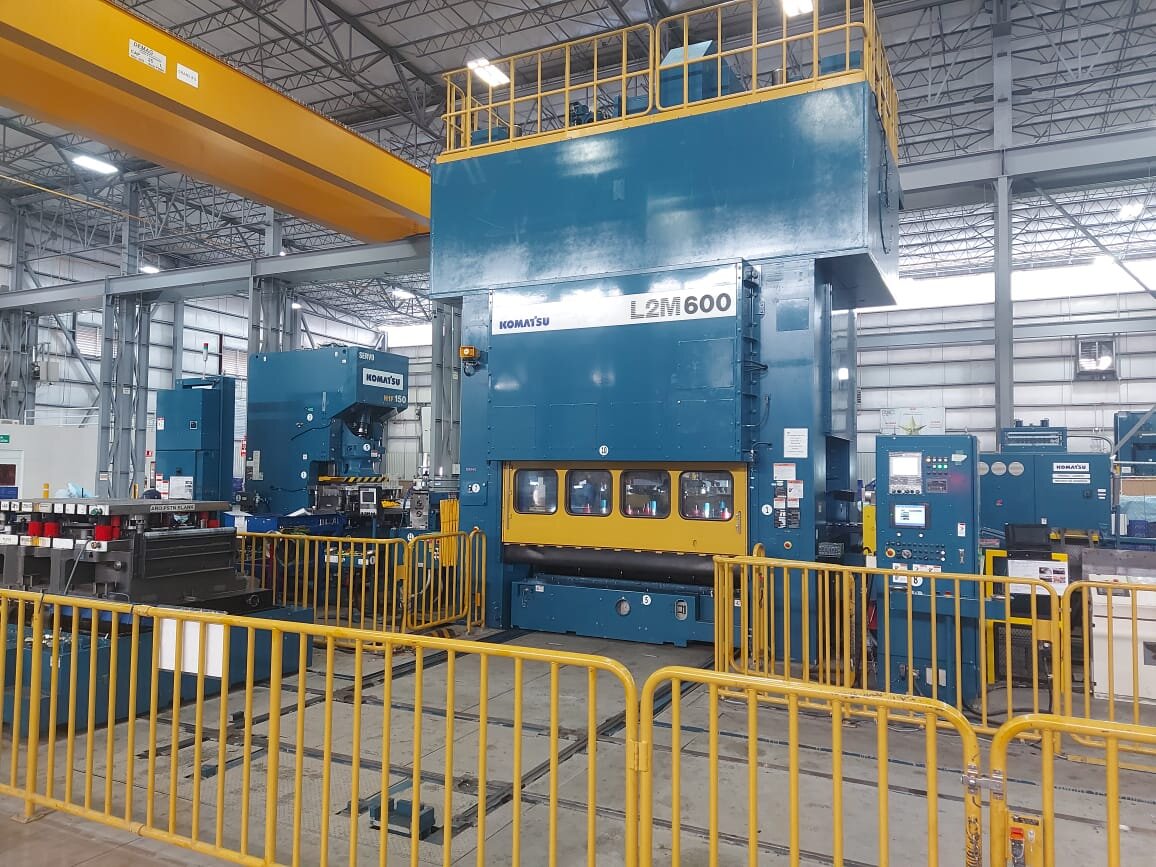

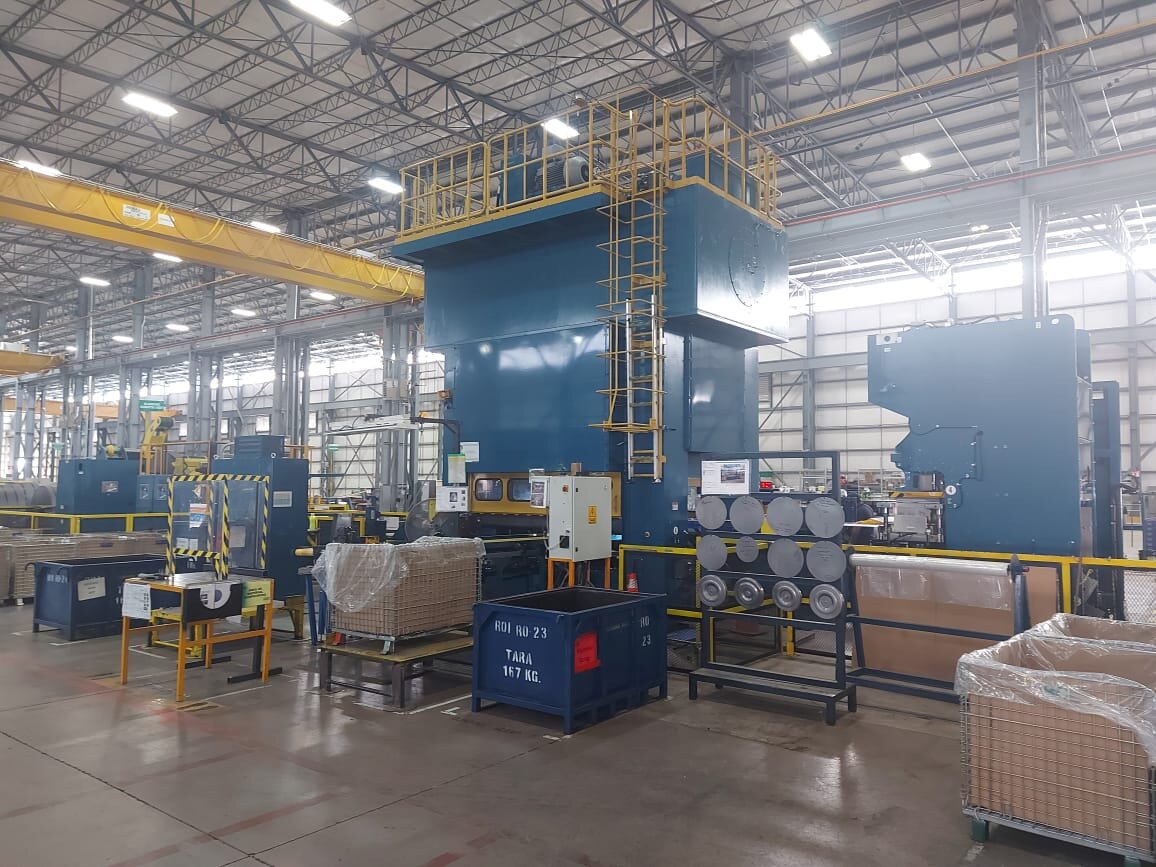

  • 600T Blanking Press #2
    Poduced by Komatsu

    L2M 600T Blanking Press
    Bolster size of 2450mm x 1400mm
    Die Height of 865mm

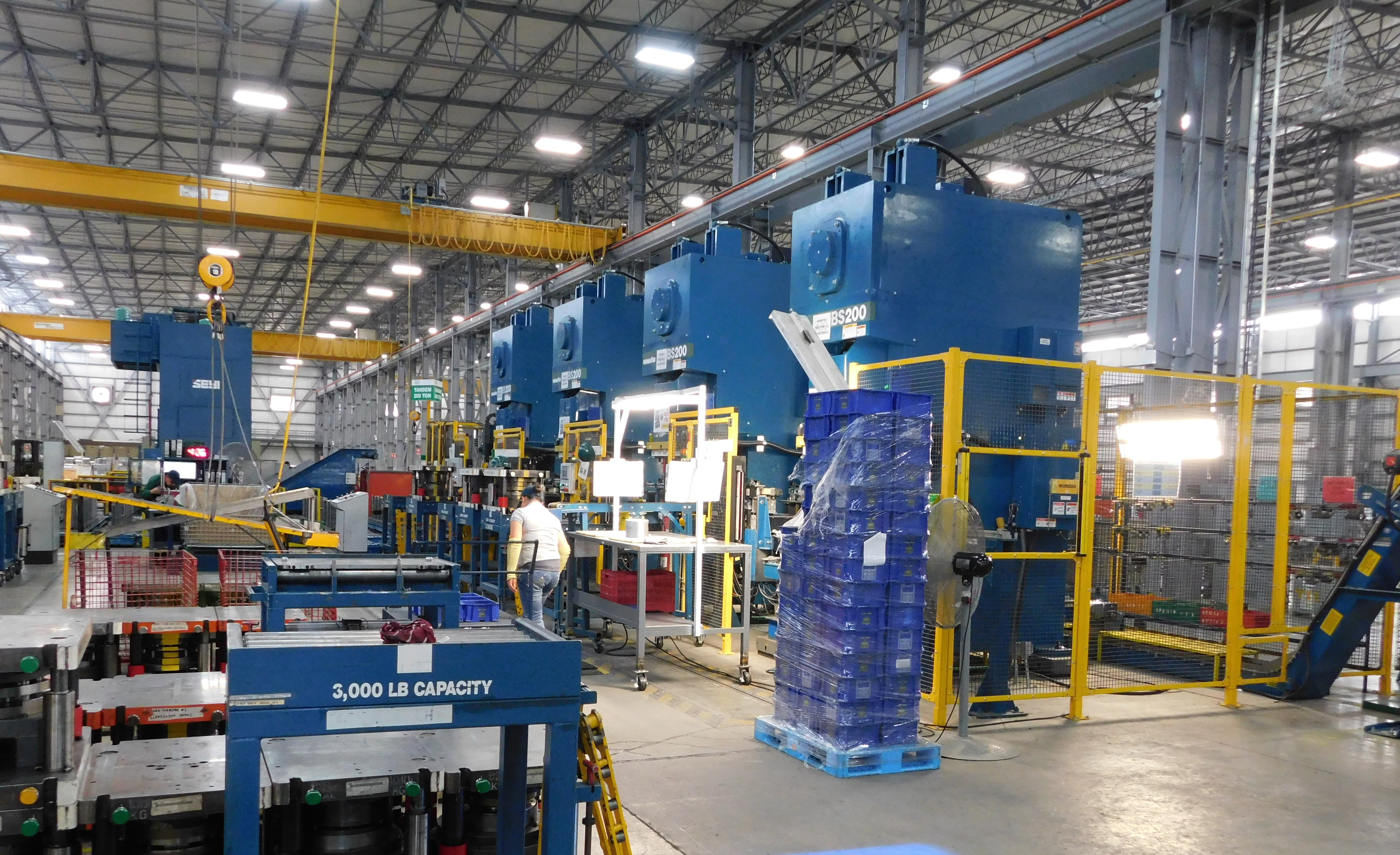

  • Tandem Press Line #1
    Poduced by Komatsu

    4 x 200 T presses
    4 x Linear transfer systems

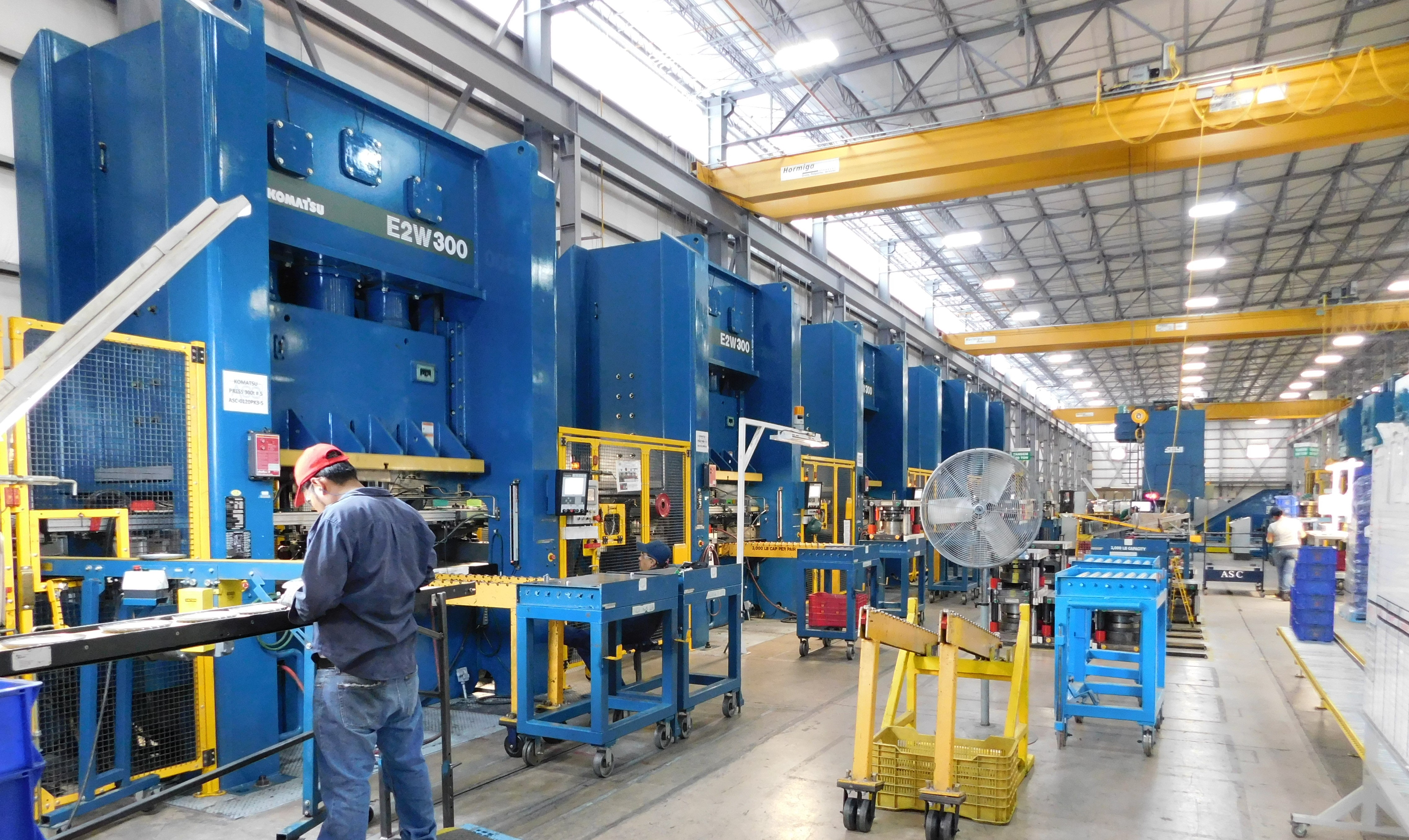

  • Tandem Press Line #2
    Poduced by Komatsu

    5 x 300 T presses & 1 x 200 T presses
    6 x Linear transfer systems

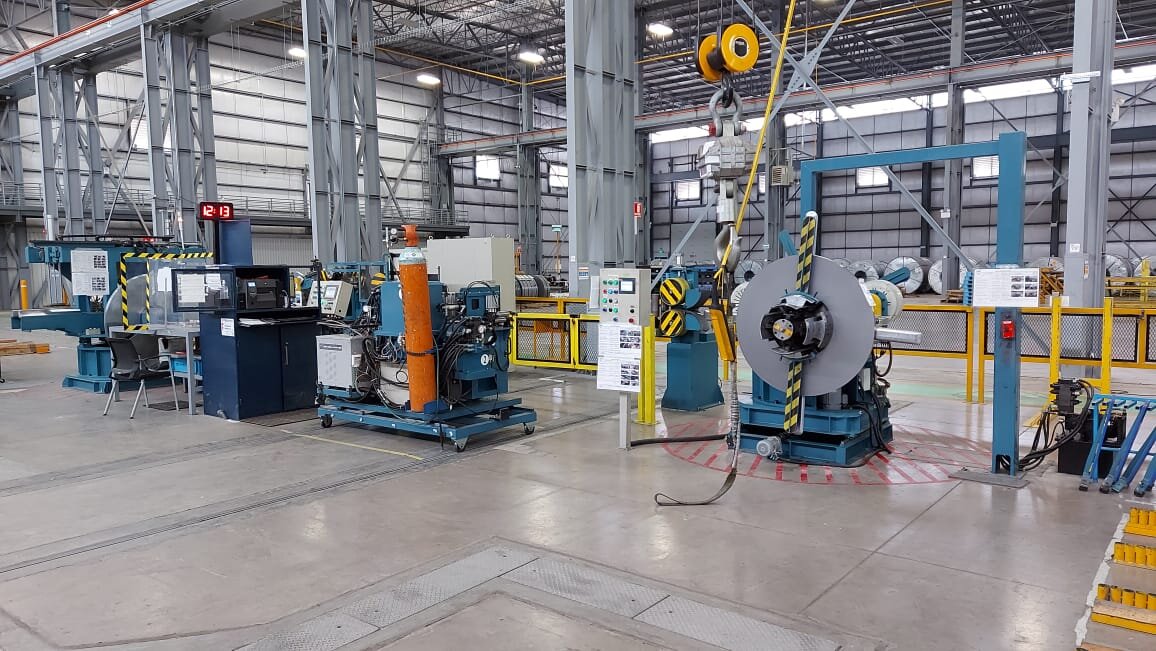

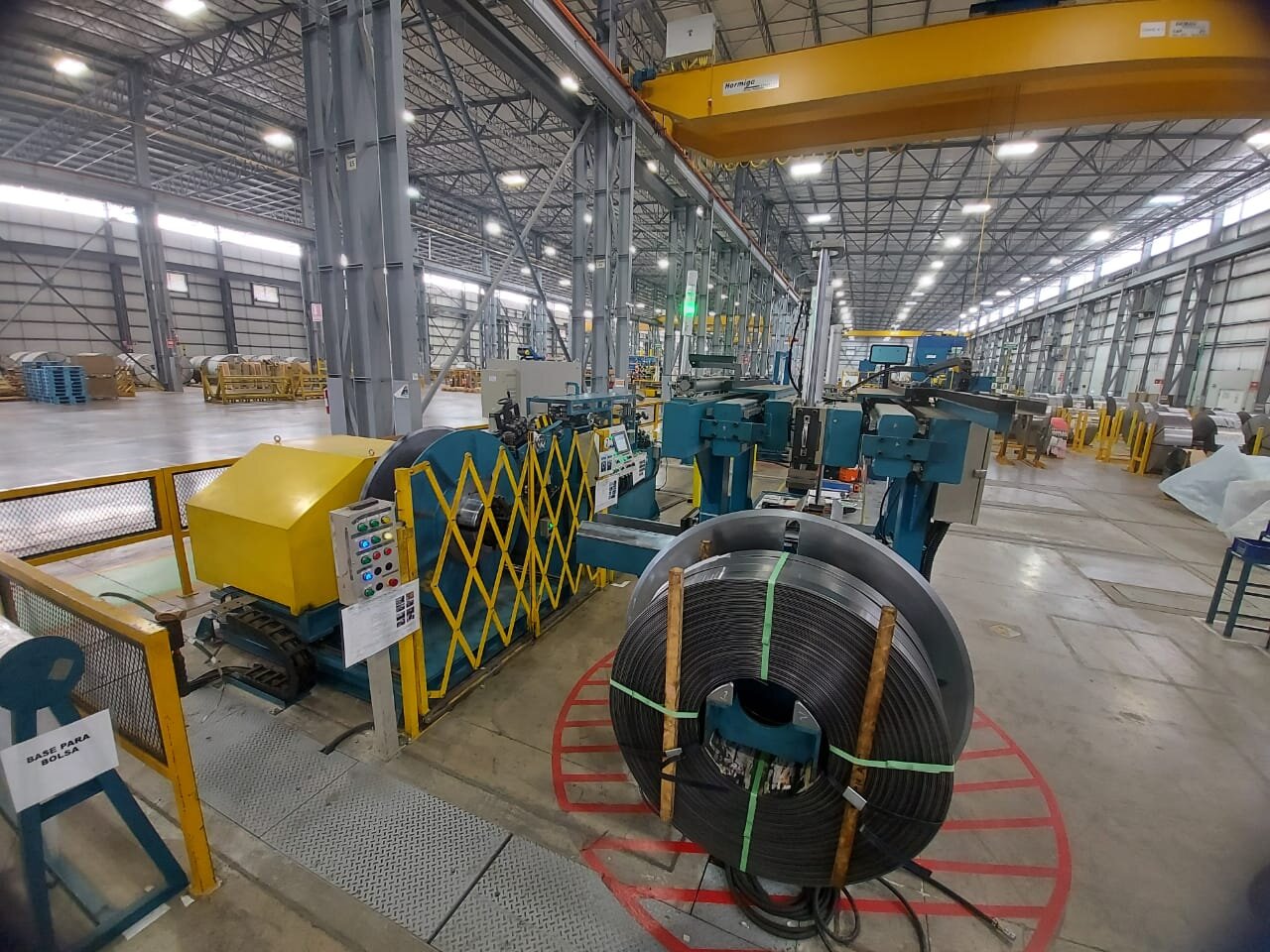

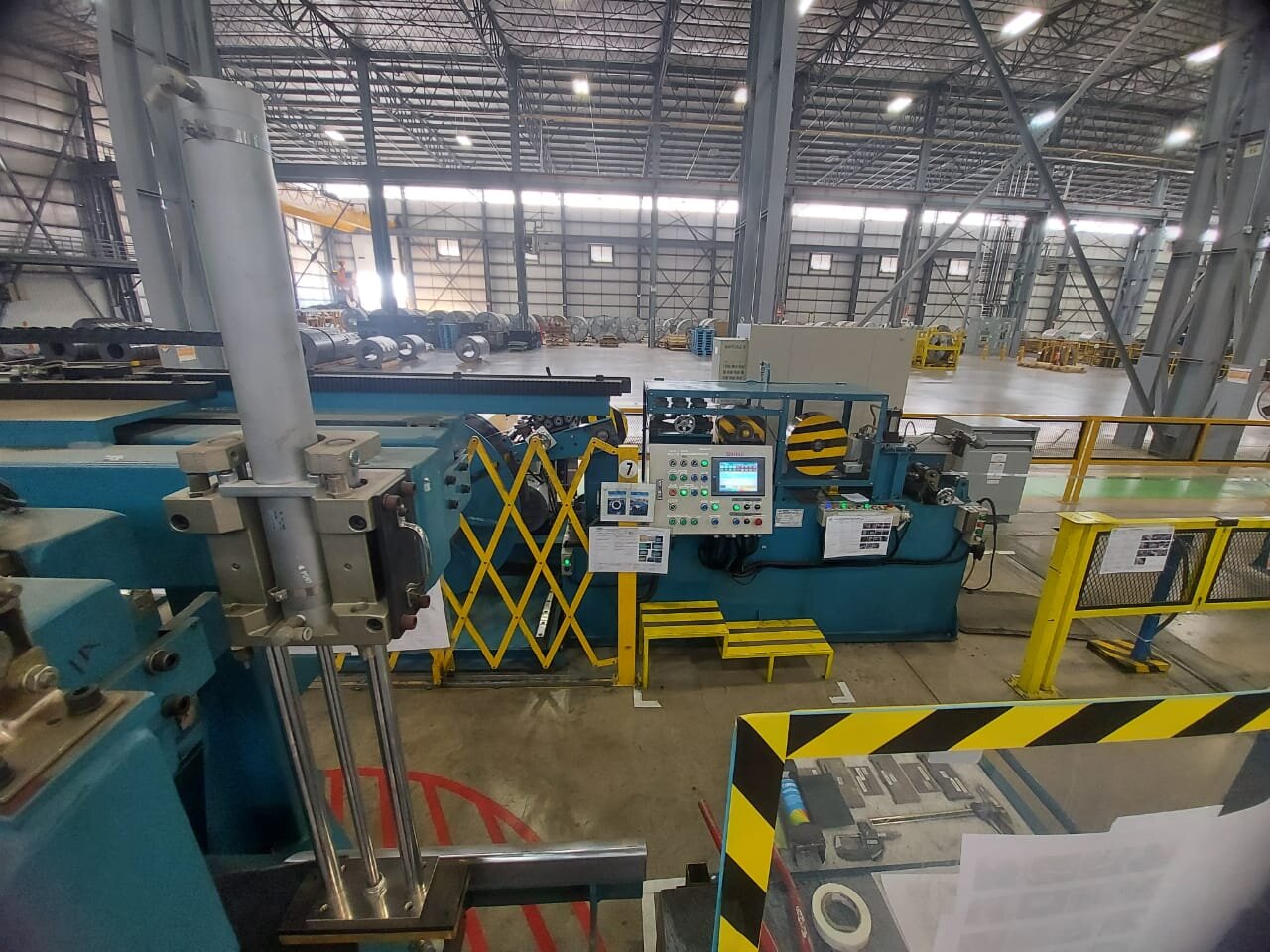

  • Oscillating
    Poduced by Kowa Tech

    Thickness
    Width
    Width of coil
    Weigth of coil
    Produced coil size

    Original coil size

    Weight of original coil
    Line Speed
    Capacity

    0.5mm~3.0mm
    60mm(Max)
    280mm
    1.5t(Max)
    ID 508Φ
    OD 1700Φ
    ID 408Φ (Consultation)
    OD 1700Φ
    3.0t
    Max 150mm/min
    250MT/M

Measurement

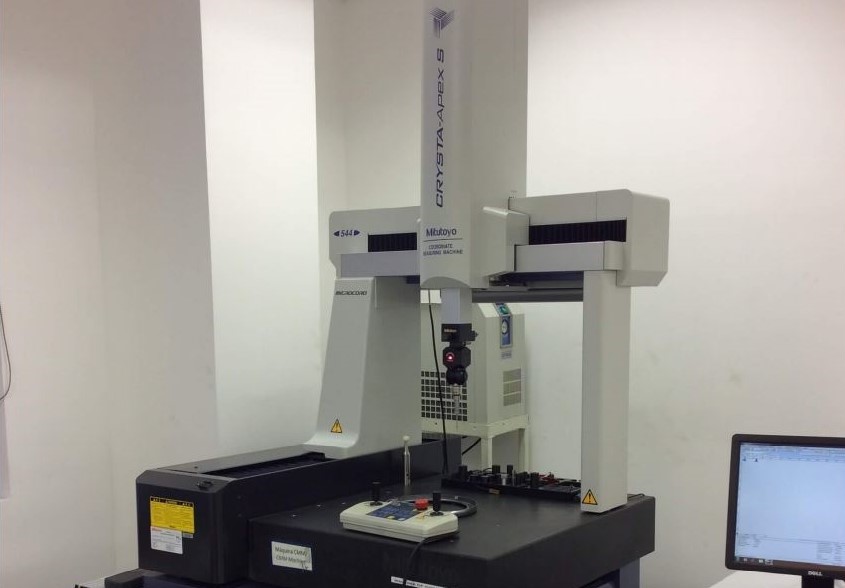

  • CRYSTA-Apex S 500 Series 54

    CMM machine measures, quantities and manages by shaping products in three dimensions, which allows us to supply high quality products.

img-slitter

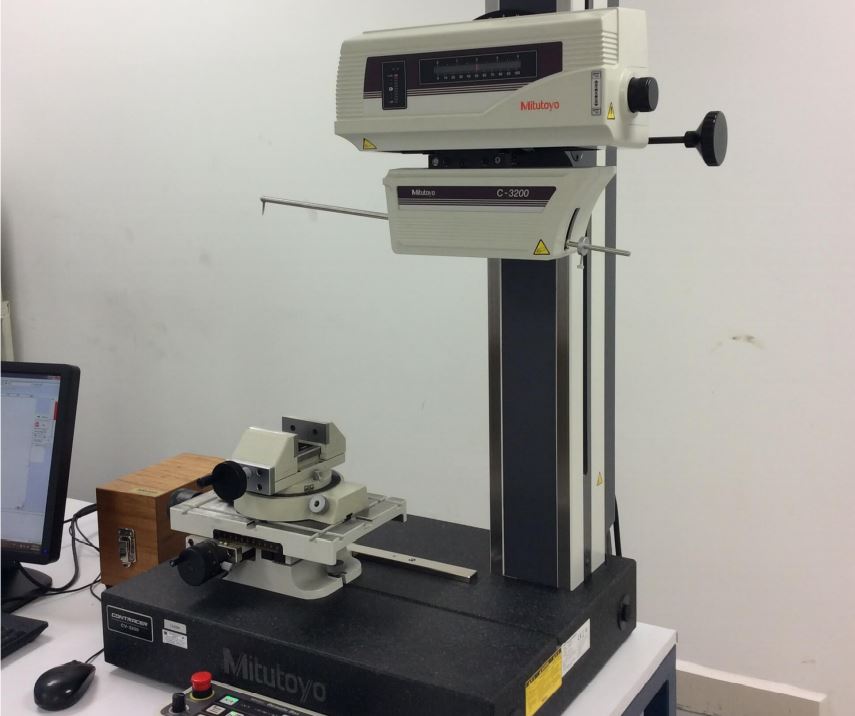

  • Contracer CV-3200 series

    Contracer measures distortion and roughness which can not be visually observed by tracing the surface of the product by stylus.

img-slitter

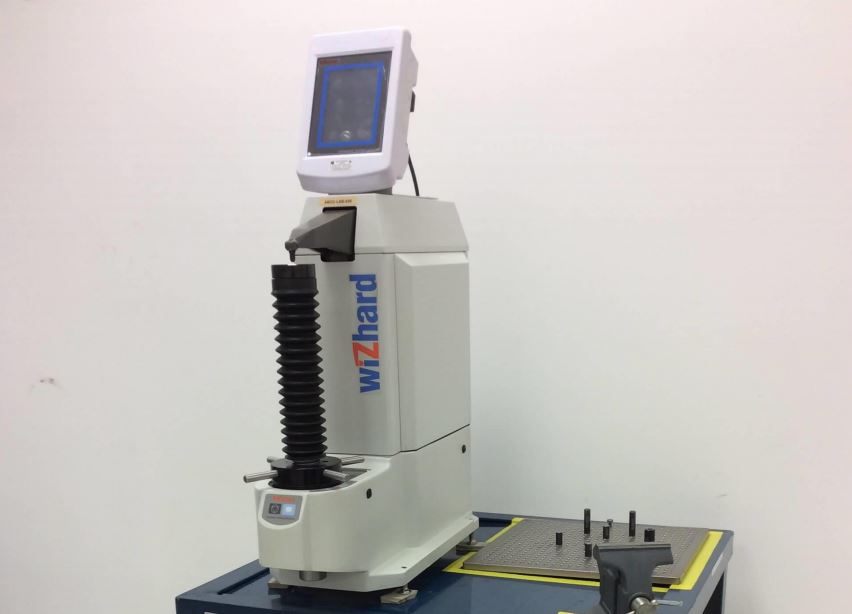

  • Durometer Series 810- Rockwell type HTM
    (Hardness Testing Machines)

    Hardness testing machine measures the hardness by pushing a conical indenter into a sample.

img-slitter
